✅ Conduction Heating system can be used to Pre-Heat iPhone logic boards ✅ Ideal for iPhone Audio IC, Charging IC, Touch IC repairs on all iPhone logicboards ✅ Power Input: AC110-230V, 50/60Hz, 5A ✅ Rated Power: 70W ✅ Temperature Range: 80 - 280 Degrees Celsius

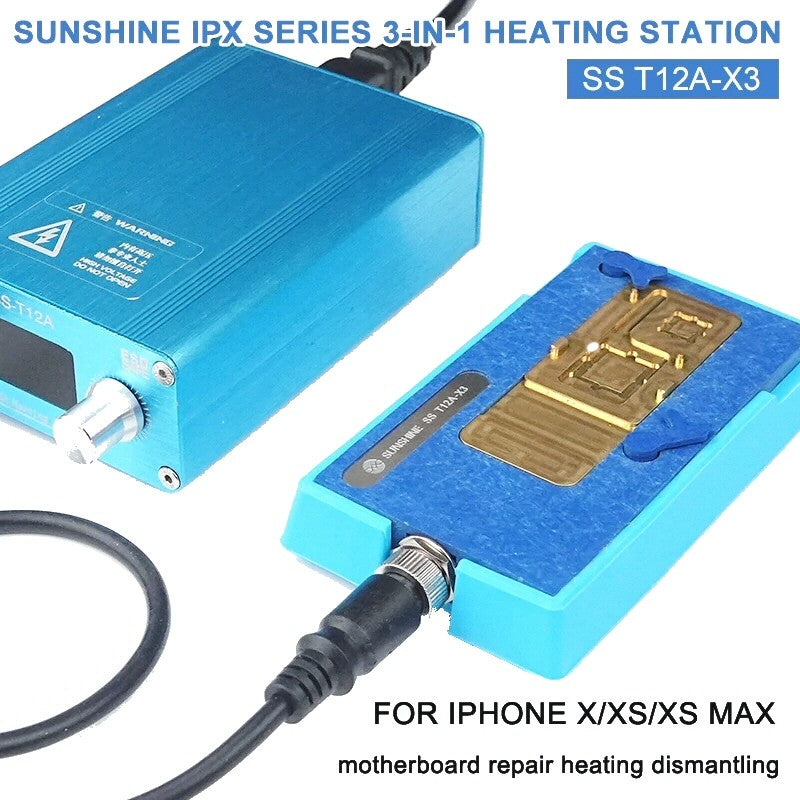

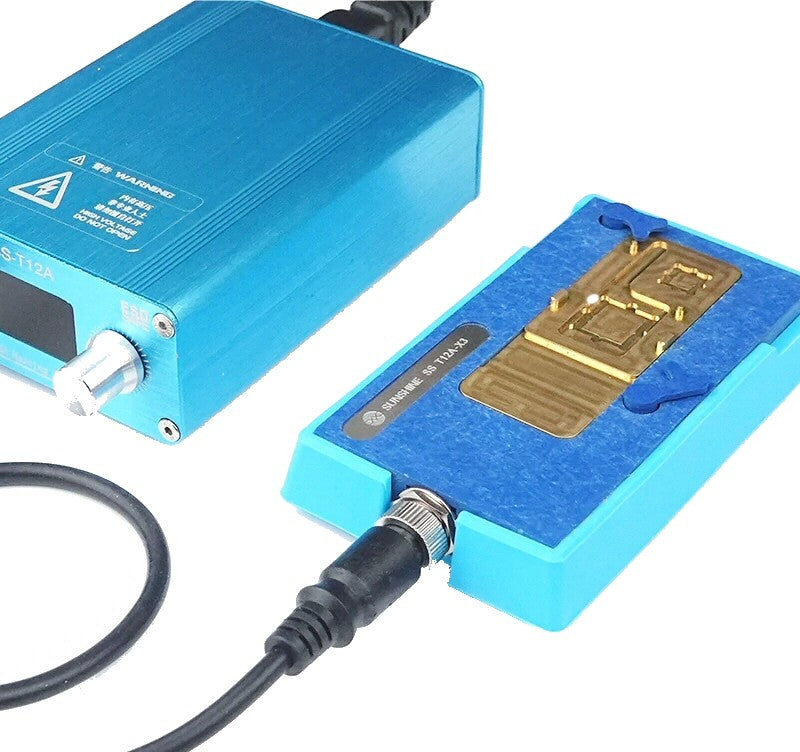

This newer 3-in-1 complete Conduction Heating system can be used to heat and separate the logic boards on iPhone X Range.

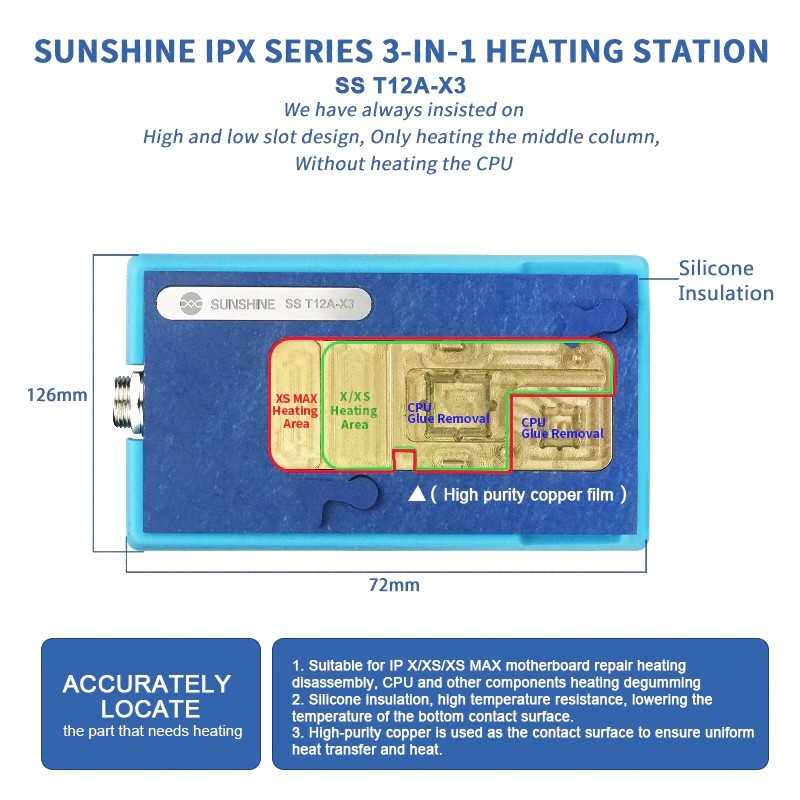

The special layout of the 3-in-1 heat mold only allows the section holding the 2 logic boards together to heat, so this is good for preventing heat transfer to parts not needed for separation.
1 Mold supports iPhone X, iPhone XS and iPhone XS Max
Video
How To Use
To separate the two parts of the logic board on iPhone x , iPhone Xs, iPhone Xs Max we use 185-degrees temperature

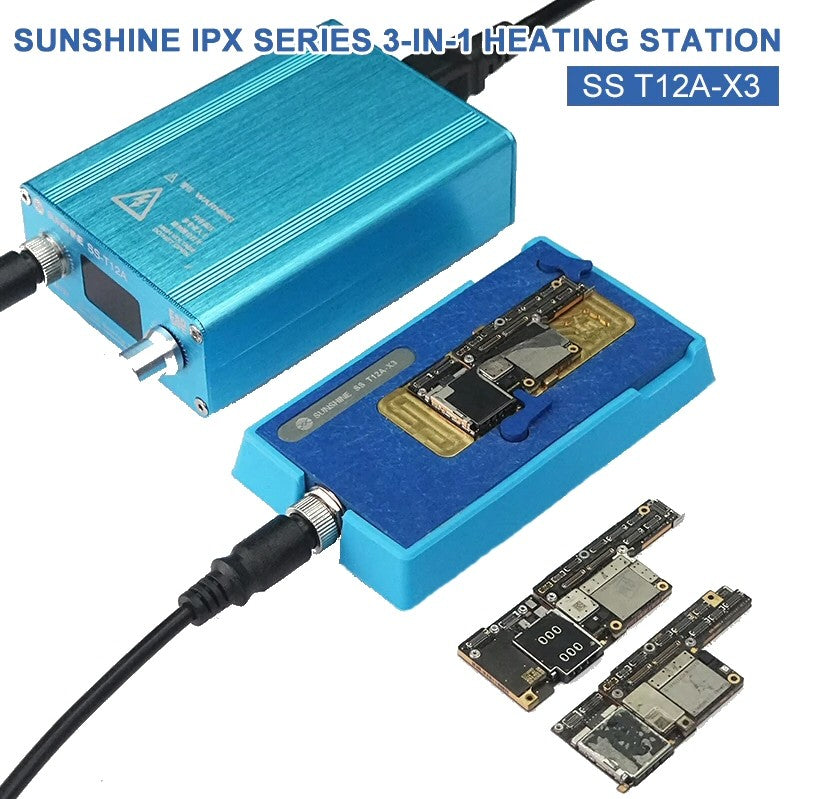

Simply clip in the logic board using the fixing arm on the lower section, switch on heat and wait until 2-4 minutes until temperature has been reached, then you can begin to separate.
Specifications
Power Input: AC110-230V, 50/60Hz, 5A
Rated Power: 70W
Temperature Range: 80 - 280 Degrees Celsius
Complete Package Contents:

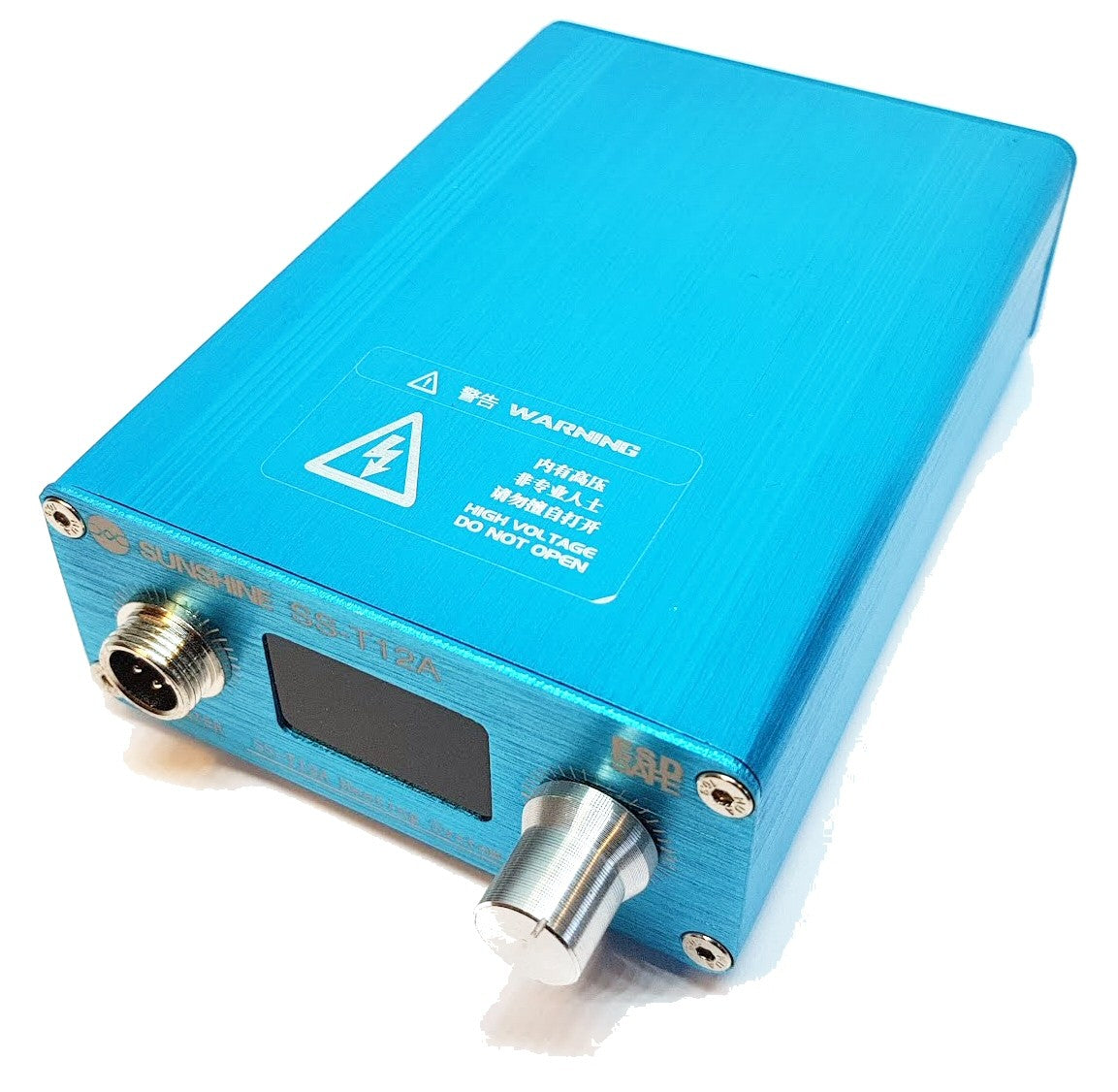

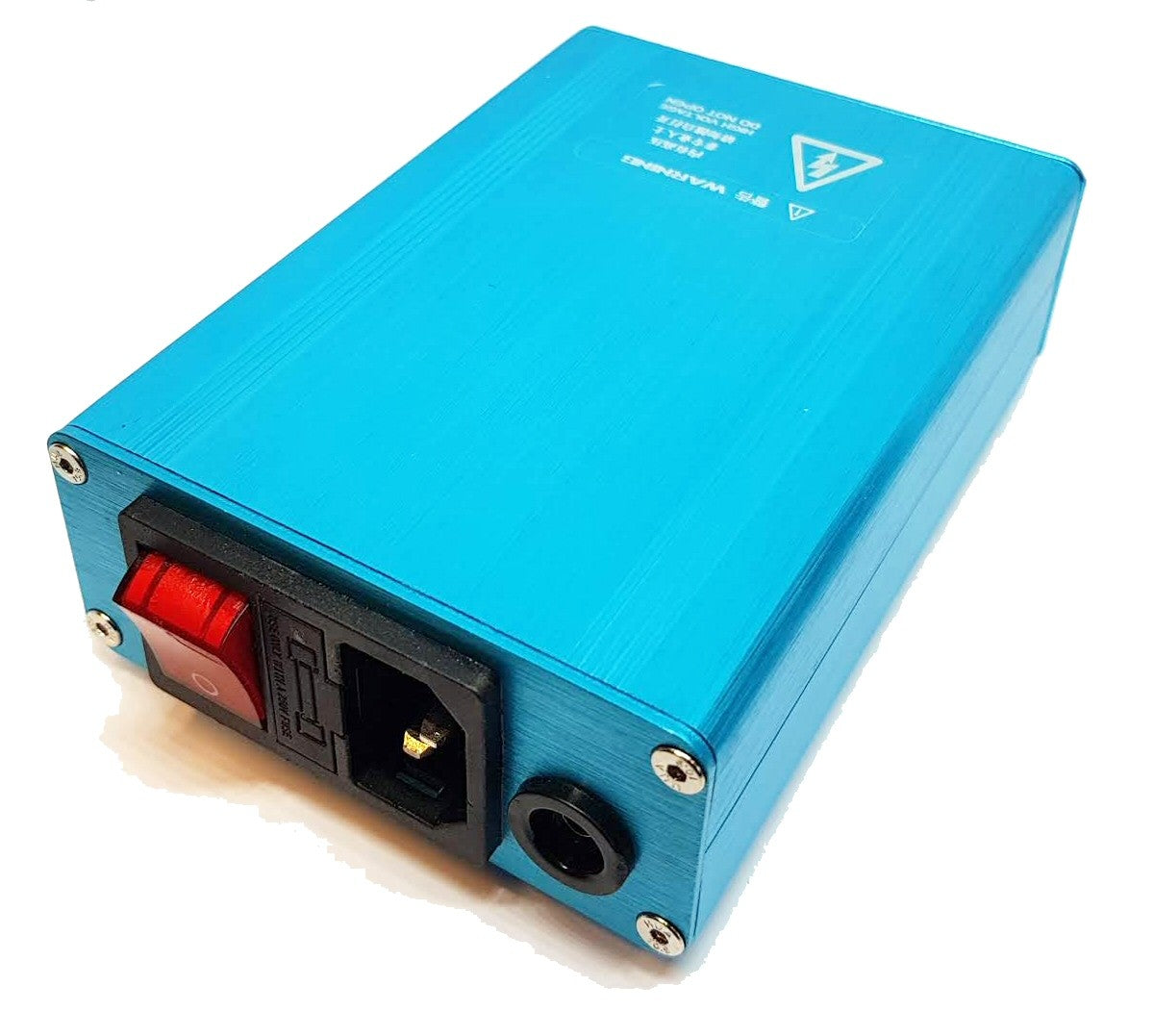

Main Heating Controller Base (T12A)

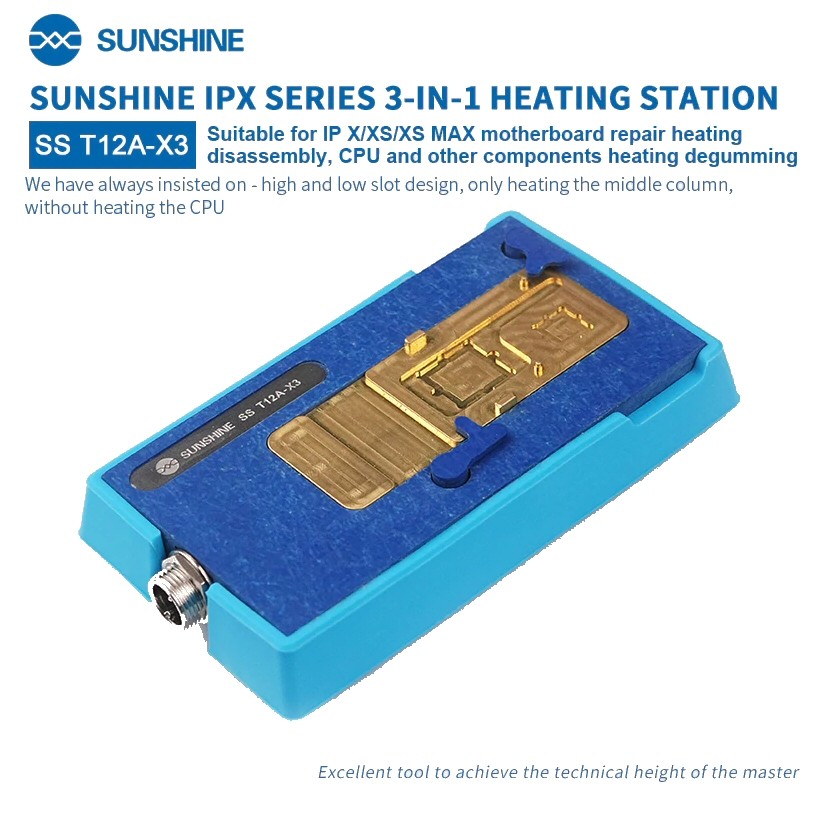

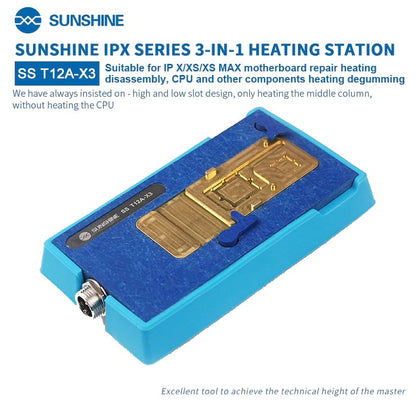

3-in1 Logic Board Separation Heat Plate For iPhone X, Xs and XS Max
