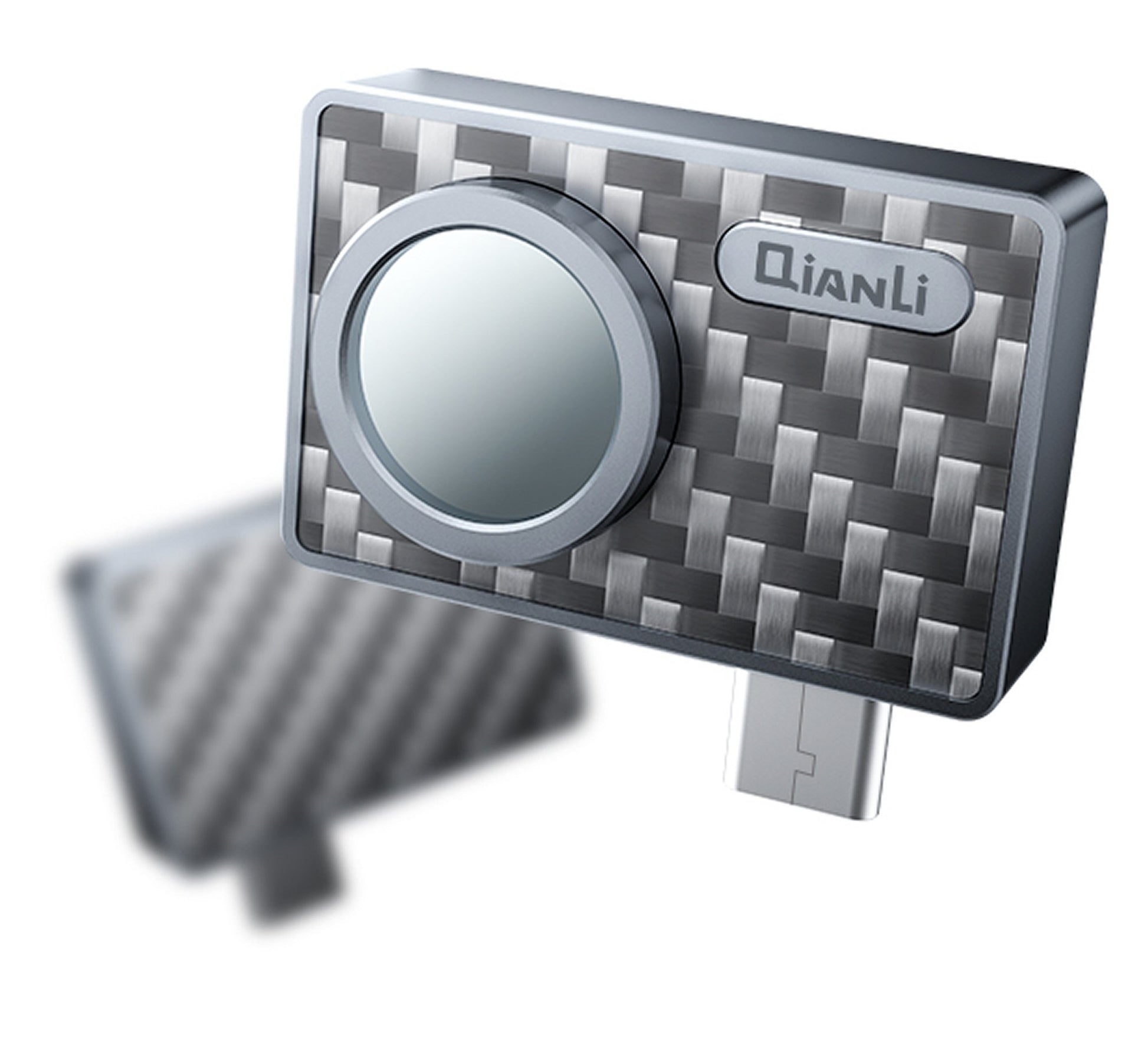

Thermal Imaging Camera QianLi Infrared Fire Eye Type C Android For Board Repair

FOCAL LENGTH - This camera has a customised 80-180mm focal length range to help excel at mobile phone repairing and board work on other devices.

PORTABLE - With a lightweight design and no need for a PC to work, this camera is fully portable.

PLUG AND USE - Fit with a Type-C connector all you need to do is plug it in into a Type-C device and you're good to go.

DOWNLOADABLE APP - To best use this camera you will need to download the app. The app adds a whole variety of features to use with the camera such as changing display modes and seeing real time scales of heat.

DISPLAY MODES - Using the app you can change the display mode that you see, this is helpful to alternate different colour coordinations if you are struggling to see or understand the original or some of the alternatives.

This camera is amazing.

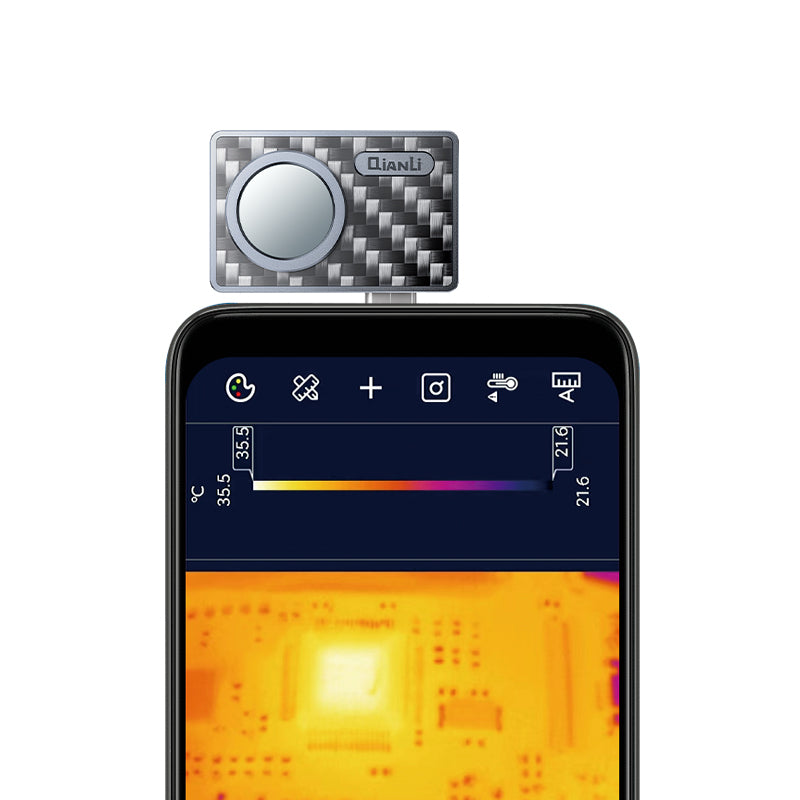

simply apply power to a phone or ipad logic board and it will detect the heat of the power leakage, this helps you identify any damaged component / IC / Capacitor etc. making repair diagnostics much easier

This camrea is the world's first dual-spectral interleaved positioning technology, through a powerful PC-side intelligent analysis software, the use of intelligent algorithms can detect the motherboard chip, the resistance of the capacitor operating temperature; can quickly locate the capacitor current leakage, short circuit; Through the normal / abnormal motherboard comparison mode analysis, quickly and accurately identify the problem chip to help maintenance staff to troubleshoot the motherboard, greatly improving the efficiency and maintenance accuracy of a new generation of maintenance equipment.



Main functions

1. Short circuit quick check.

2. Phone operation.

3. Lightweight and portable.

4. Temperature tracking.

5. Regional temperature measurement.

6. High temperature Alarm.

7. Color palette switch.





Features in Brief:

Resolution: 256x192

Focal length 80~180 mm

Frame Frequency 25hz

Display Modes: Iron, White Hot, Black Hot, Rainbow, Red Heat and Cold Blue

Interface Type Type-C

Lens: 3.2mm

Temperature Measurement Range: -15°C~600°C

Shell Material: Aluminium, Carbon Fibre





All Features:

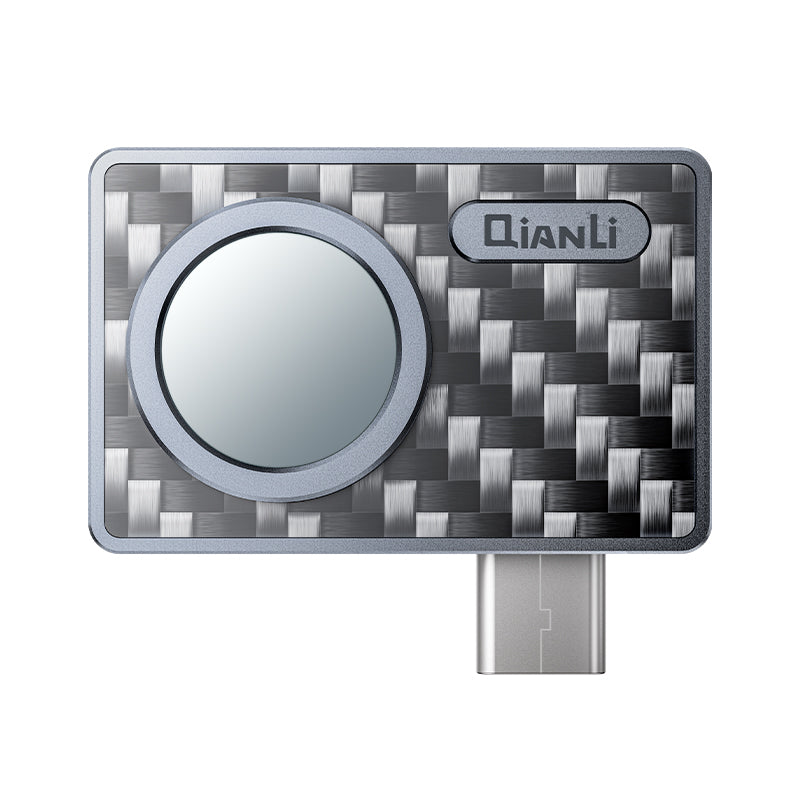

1. Android Type-c connector.

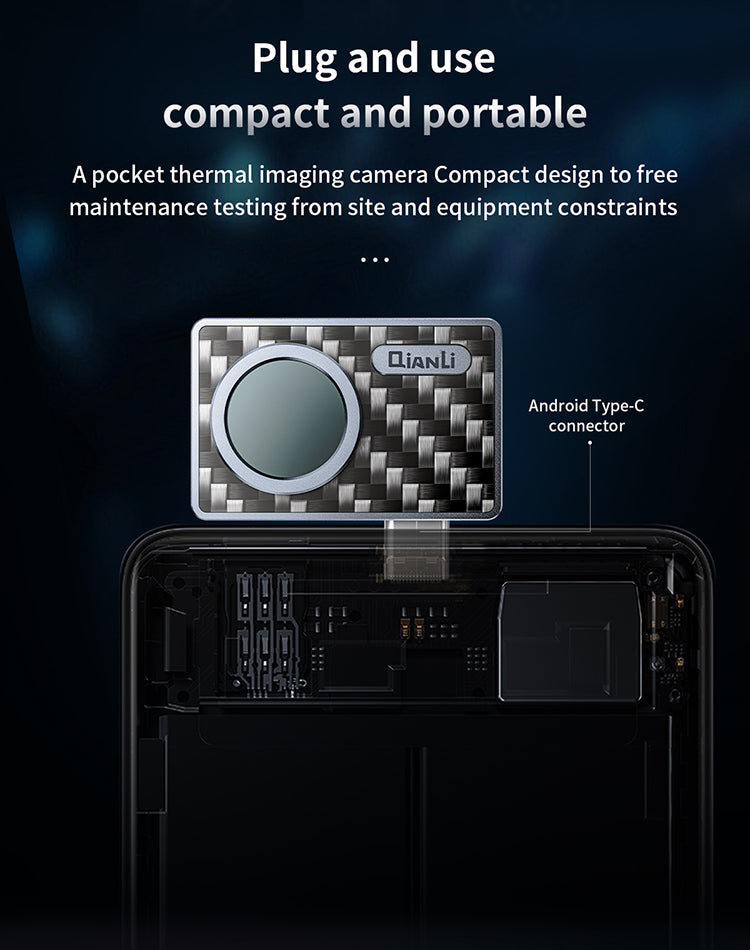

2. No PC required, plug and use, aluminium centre frame carbon fibre surface, compact and portable.

3. Customized 80-180mm focal length range, designed for mobile phone motherboard repair, scientific research testing, PCB development and optimization, and other temperature adjustment in close range.

4. A pocket thermal imaging camera compact design to free maintenance testing from site and equipment constraints.

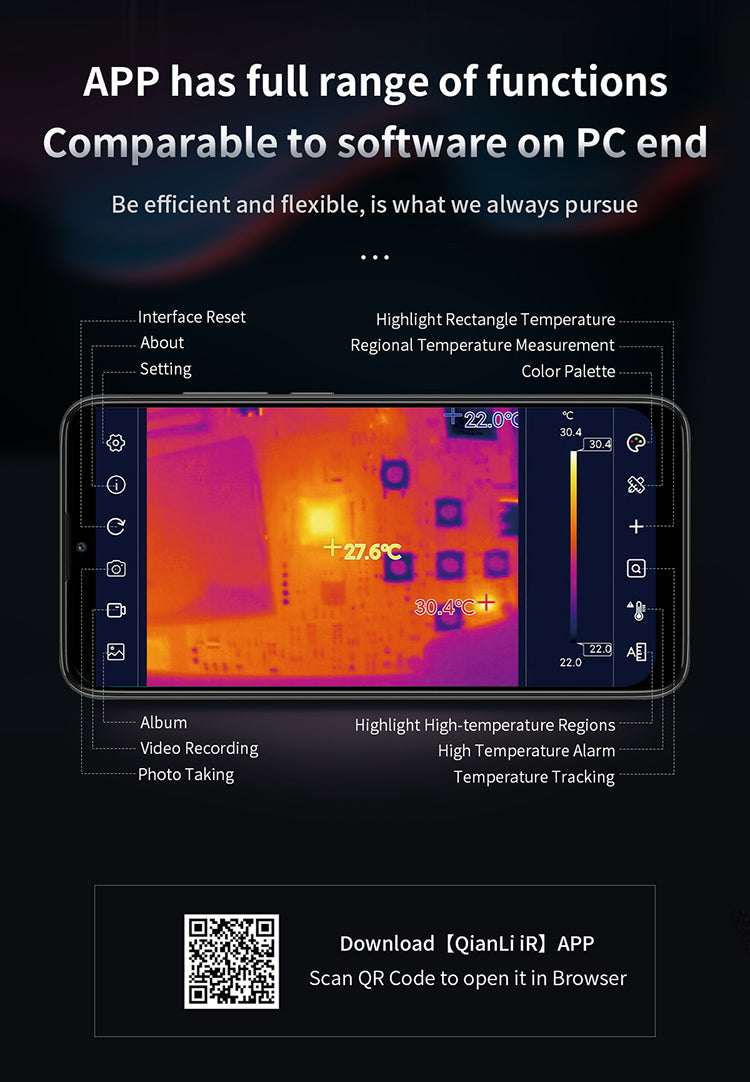

5. App has a full range of functions, comparable to software on the PC end, efficient and flexible.

6. Temperature range adjustment,quickly locate the high temperature defects.

7. High temperature QUICK check and Locate.

8. Customized regional temperature measurement.

9. High Temperature Alarm.

10. Multiple colour display modes.

11. Temperature measurement: support high and low temperature auto tracking, points, regional and lines temperature measurement, temperature range check.

12. Center cross: Iron, white hot, black hot, rainbow, red heat, cold blue.

13. Photos and videos: support photos taking and video recording, photos scan and playback.

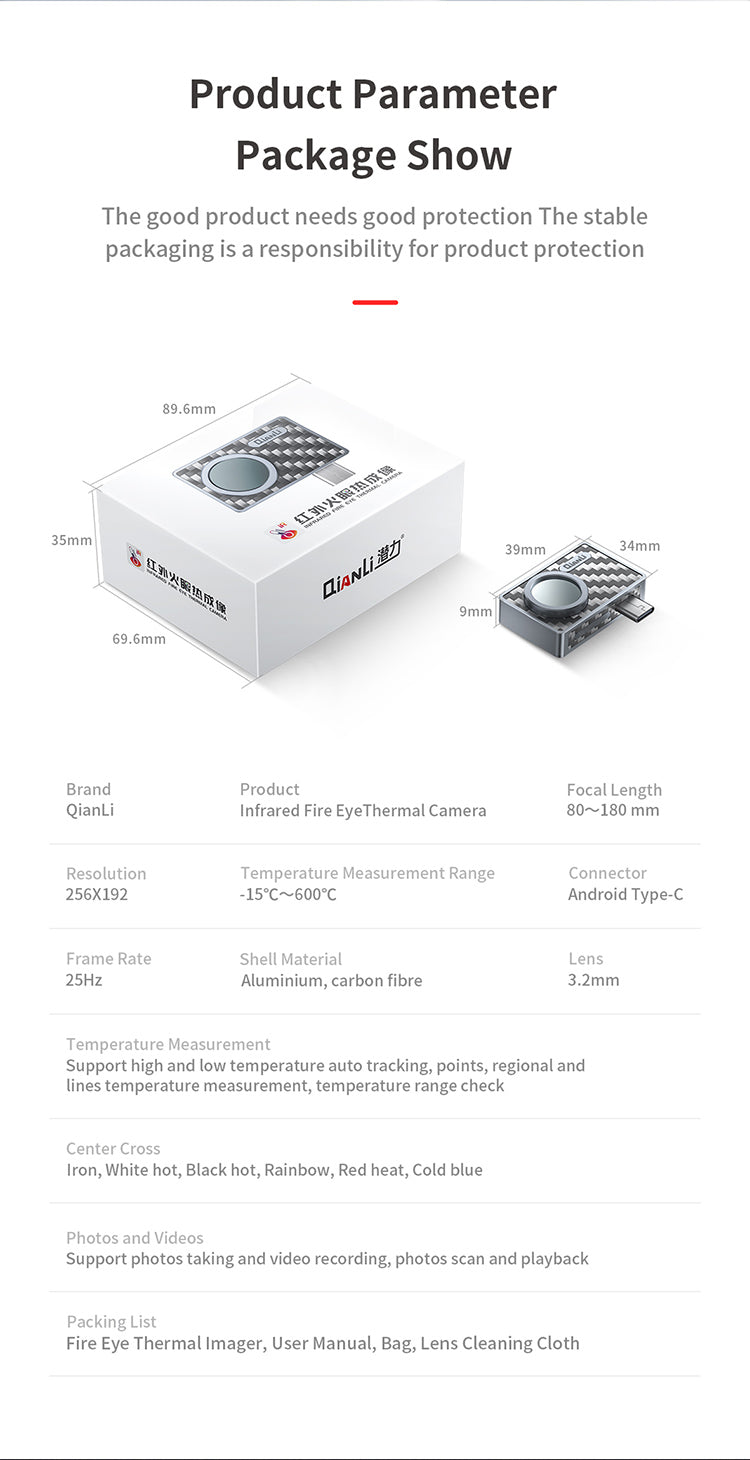

Parameters:

Model: QianLi Infrared Fire Eye Thermal Camera.

Focal Length: 80-180mm.

Resolution: 256x192.

Frame rate: 25Hz.

Temperature measurement range: -15‚¬¾ƒ-600‚¬¾ƒ.

Shell material: Aluminium, carbon fibre.

Connector: Android Type-C.

Lens: 3.2mm.





Usage:

1. Temperature range adjustment.

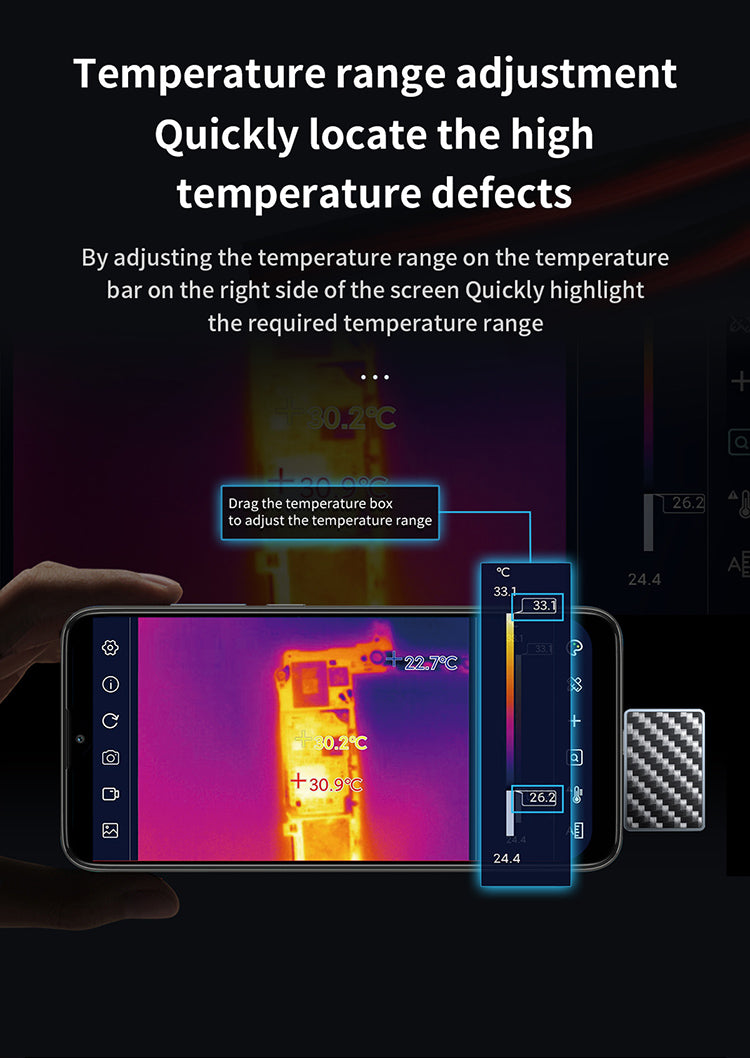

By adjusting the temperature range on the temperature bar on the right side of the screen, quickly highlight the required temperature range.

2. High temperature QUICK check and Locate.
Under this mode, the high temperature region is displayed in the current colour palette and the other regions are white hot. The temperature range can be adjusted via the slider on the right side of the colour palette bar to quickly locate high temperature.

3. Customized regional temperature measurement.
Click on the "Regional Temperature Measurement" button on the right side to add points, straight lines and rectangular boxes to the video for temperature measurement, the straight line and rectangular box will show the real-time maximum and minimum temperatures for the displayed region. Long press on each added area will bring up the deleted icon, click on the icon to delete, high temperature abnormalities, palette bar to quickly locate high temperature abnormalities.

4. High Temperature Alarm.
Real-time attention to the screen is not required, the set temperature is automatically alerted.

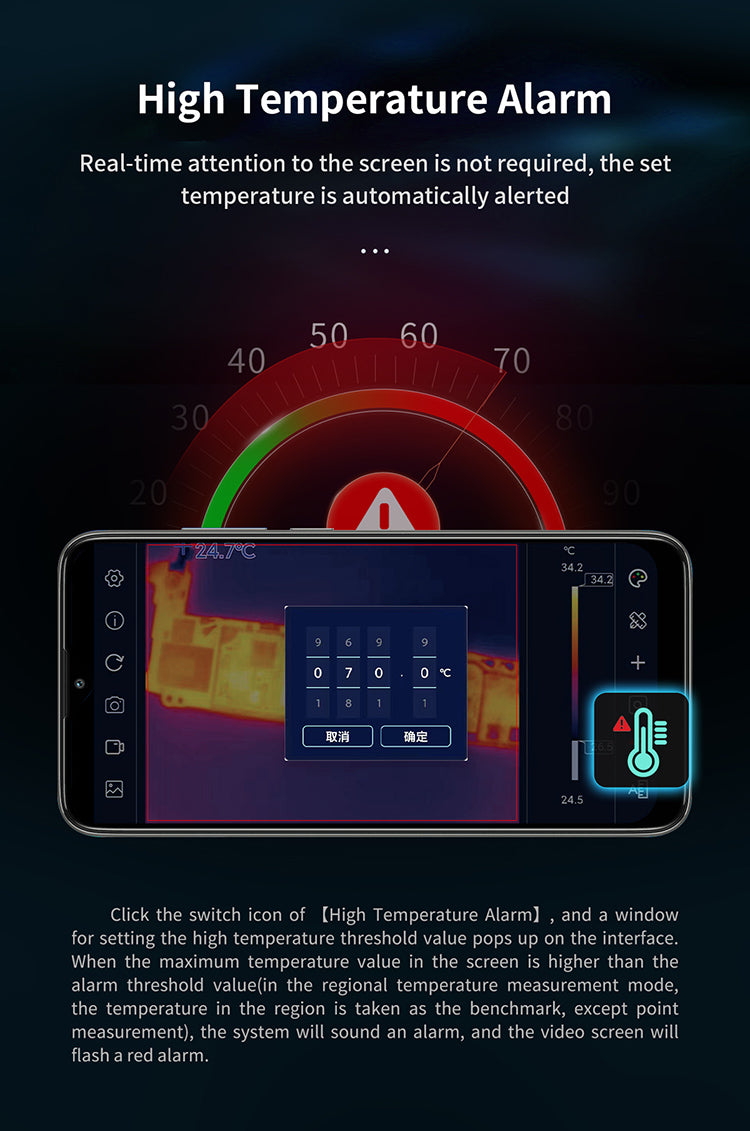

Click the switch icon of "High Temperature Alarm", and a window for setting the high temperature threshold value pops up on the interface. When the maximum temperature value in the screen is higher than the alarm threshold value(in the regional temperature measurement mode, the temperature in the region is taken as the benchmark, except point measurement), the system will sound an alarm, and then the video screen will flash a red alarm.

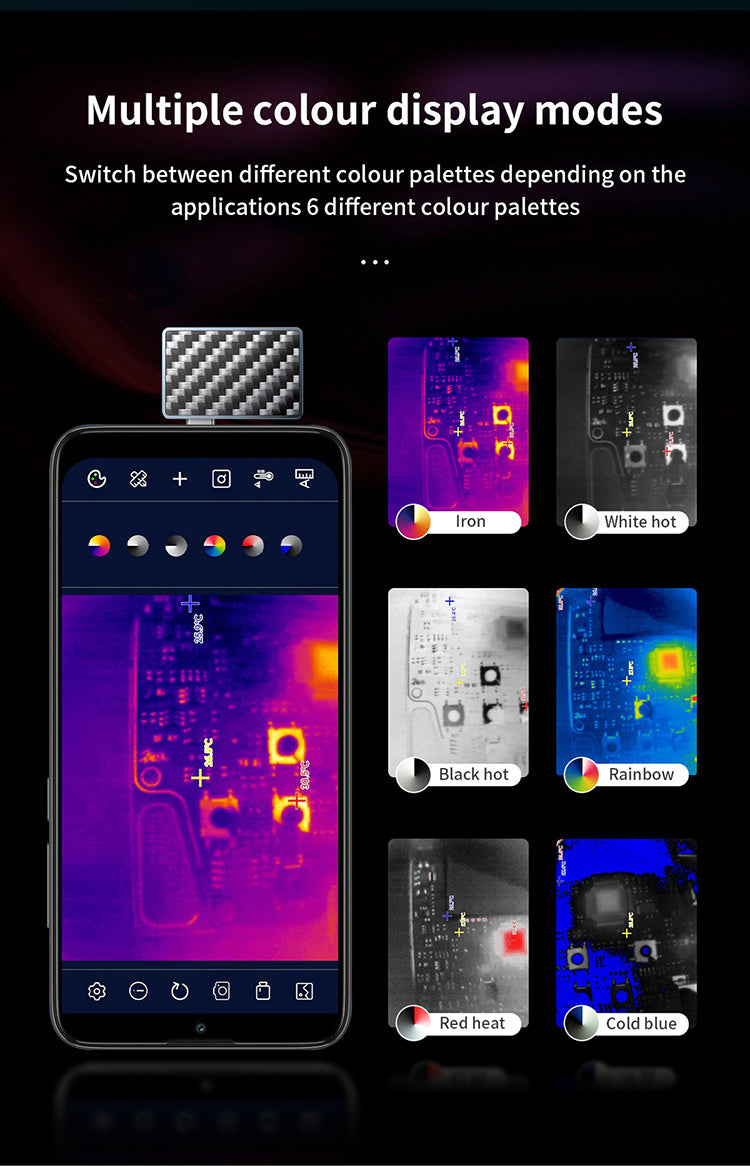

5. Multiple colour display modes.
Switch between different colour palettes depending on the applications 6 different colour palettes.





Package Contents:

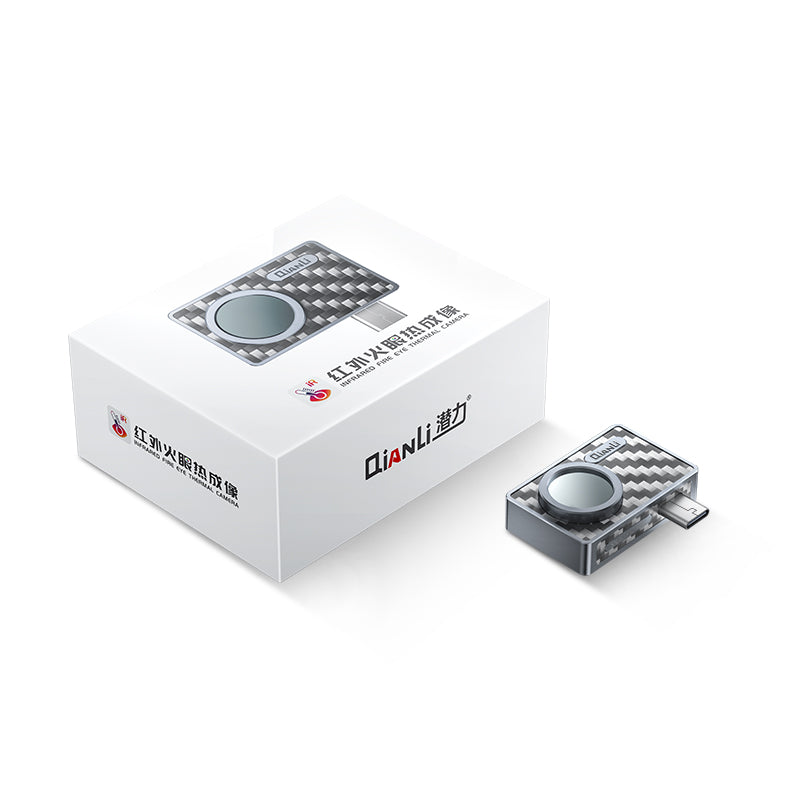

1 x QianLi Infrared Fire Eye Type-C Android Thermal Imaging Camera for Board Repair
