RT809H EMMC NAND FLASH Programmer With 51 Adapters Plus BGA63 and BGA64 Sockets



About RT809H EMMC-Nand FLASH Programmer + 51 ADAPTERS WITH CABELS EMMC-Nand

Full Support LCD TV FLASH drivers read and write unlimited capacity TSOP48 nand FLASH EMMC TSOP56 pin TOP8-16 pin Support CAR DVD, SMART TV.

The Only universal programmer which can automatically detect chip number for all Chips.

The only universal programmer which can put ic in any position and make intelligent sense.

The Only universal programmer Support Read and program Laptop I/O via keyboard line.

The Only universal programmer Support Read and Program LCD TV VIA VGA and HDMI PORT.

The Only universal programmer Support ADD new flash by yourself without wait for factory.

The Only universal programmer built in Most of repair applications TV,DVD,DVB,and many isp software.

The Only universal programmer make selftest for LCD TV itself and diagnostic fault.

The best programmer to read and programing flash on motherboard without removing out

Support Read and Programming OTP area .

Support UPTO 64GB NAND FLASH



Short description:

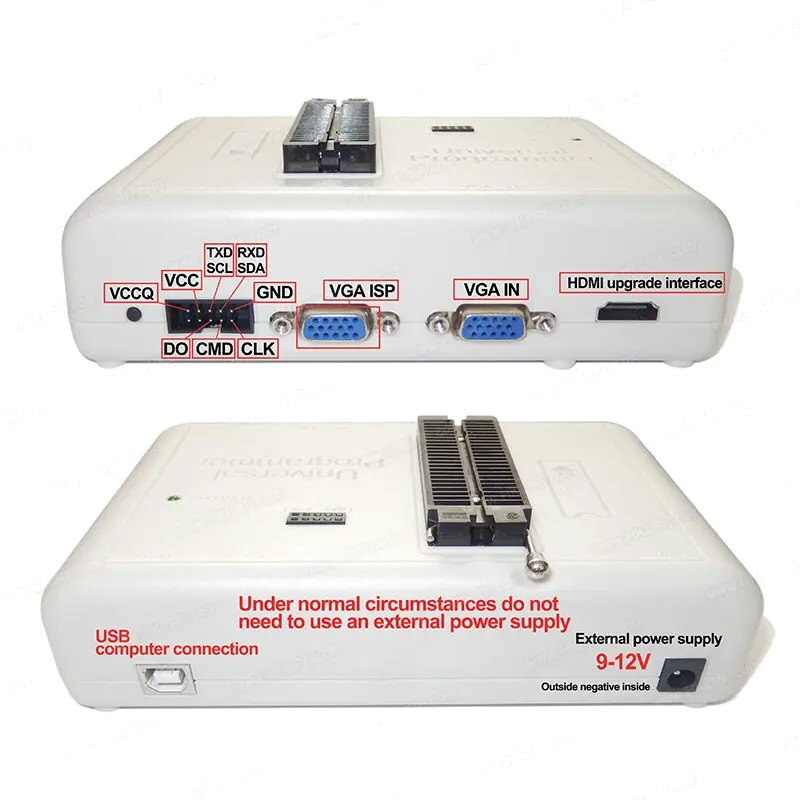

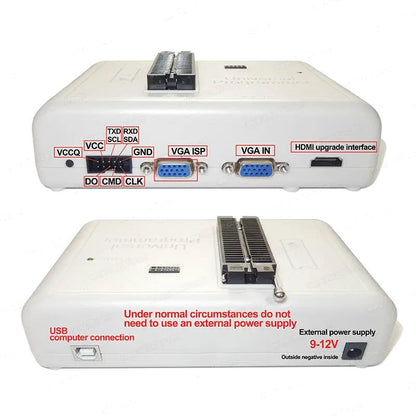

• 48-pins powerful pindrivers, no adapter required for any DIL devices
• ISP connector for in-circuit programming
• VGA port to read and write LCD TV-MONITORS without disassembly .
• HDMI port to read and write LCD TV-MONITORS without disassembly .
• Connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface
• Comfortable and easy to use control program, works with all versions of MS Windows
• Can support any flash and very easy to add new flash .
• High programming speed.
• Advanced and powerful software functions.
• Online Technical Support is also available 24 hours .
• One Year warranty.
• Provides very competitive price coupled with excellent hardware design for reliable programming.
• the programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.
• The selftest capability allow to run diagnostic part of software to thoroughly check the health of the programmer.
• Support Auto select for any series of flash including TSOP48-NAND-EMMC-PLCC,,ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.
• All known data formats are supported. Automatic file format detection and conversion during loading of file.
• The software also provide a special information about programmed device. As a special, the drawings of all available packages are provided
• The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.

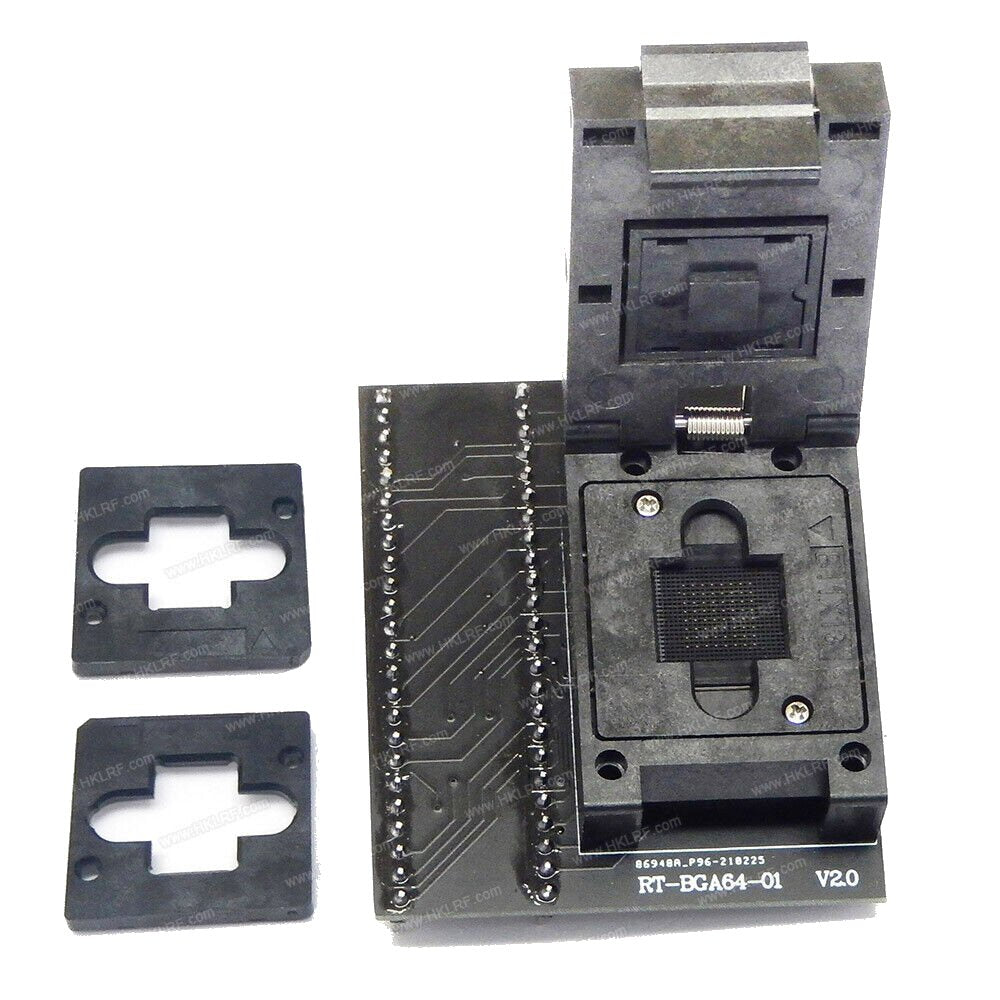

About BGA64 Socket

RT809H special seat RT-BGA64-01 V2.0 EMMC Adapter
Buy Limit Frame: * 9*9mm
RT-BGA64-01 1.0mm spacing frame 11*13mm Adapt to S29GL512 S29GL256 S29GL128 S29GL064 S29GL032
RT-BGA64-02 1.0mm spacing frame 10*13mm Adapt to 28F640,28F128
RT-BGA64-02 1.0mm spacing frame 10*15mm Adapt to 28F256
1. High quality and high accurate positioning
2. Pins count available: 1~2000 pins (2000pins 0.4mm Max.)
3. Pitch=0.4mm, 0.5mm, 0.65mm, 0.8mm, 1.0mm or irregular pitch
4. Low or high frequency
5. For universal,ddr,flash,emmc and CPU chip
6. Life span: ‚¬°¥30,000 times
7. Material: PEI & PES
8. Temperature: -55°C~+170°C
9. Clamshell/open-top available
10. We can help to design Transit or adapter board PCB if neccesary



About BGA63 Socket

RT809H special seat RT-BGA63-01 V2.1 EMMC Adapter
Limit frame specification: 11*9mm

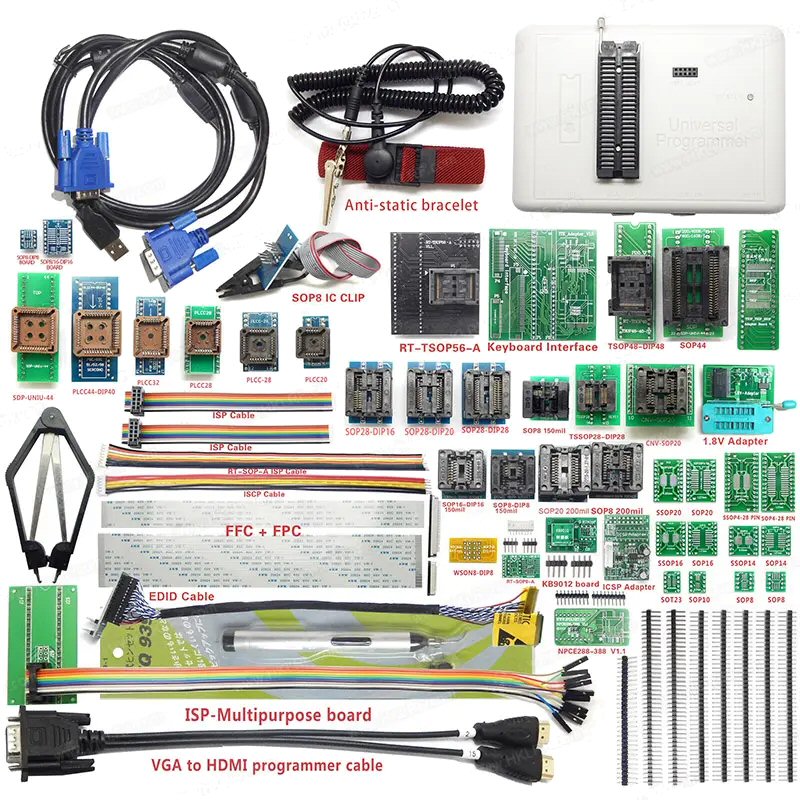

Package Contents:

1 x RT809H EMMC-NAND FLASH Programmer (Main Unit)

1 x RT-BGA63-01 V2.1 EMMC NW267 Adapter

1 x RT-BGA64-01 frame 11*13mm special NOR Adapter

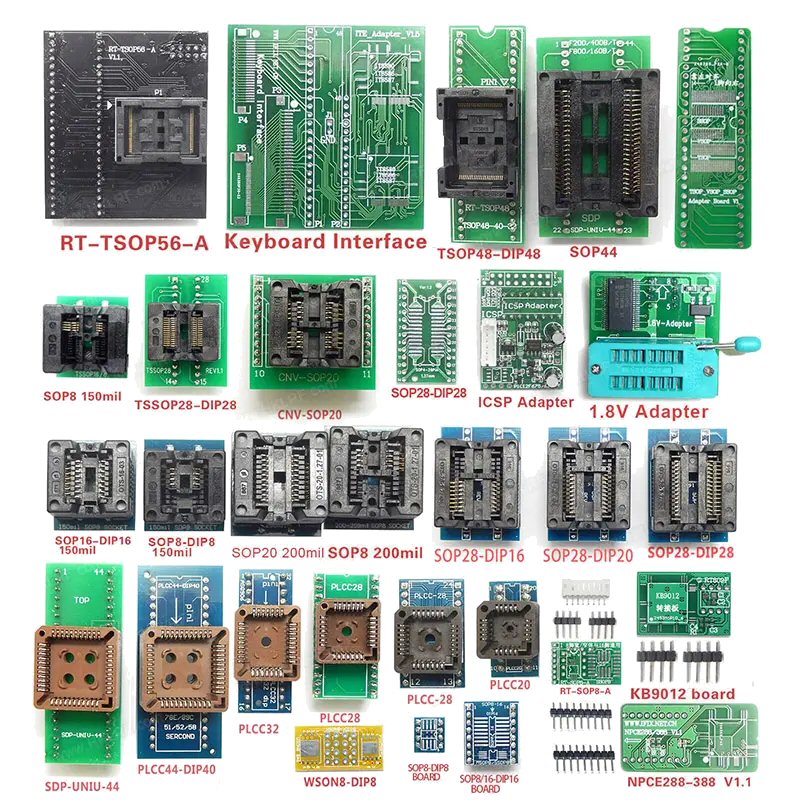

51 x Adapters / Cables Including:

1 * RT809H universal programmer

1 * TSOP56 Adapter RT-TSOP56-A V1.1

1 * TSOP48 Adapter

1 * SOP44-DIP44 1.27mm (530mil) Adapter

1 * SOP28-DIP28 (300mil) Adapter

1 * SOP20-DIP20 (300mil) Adapter

1 * SOP16-DIP16 (300mil) Adapter

1 * Double SOP8-DIP16 CNV-SOP20 (208mil) Adapter

1 * SOP8-DIP8 CNV-SOP20 (208mil) Adapter

1 * SOP20-DIP20 CNV-SOP20 (208mil) Adapter

1 * SOP8-DIP8 CNV-SOP-DIP16 (150mil) Adapter

1 * SOP16-DIP16 CNV-SOP-DIP16 (150mil) Adapter

1 * PLCC44-DIP44

1 * PLCC44-DIP40

1 * PLCC32-DIP32

1 * PLCC28-DIP28

1 * PLCC28-DIP24

1 * PLCC20-DIP20

1 * SSOP28 to DIP28

1 * TSSOP8 to DIP8

1 * KB9012 board

1 * SOP8 IC Clip

1 * TSOP-VSOP-SSOP adapter

1 * ITE 29/39/49/50 series 32/40/48 feet adapter

1 * Multipurpose ISP-DuPont-Header Adapter

1 * EC NPEC288 NPEC388 PCB Board

1 * TSOP28Pin 0.65mm Adapter Board

1 * SOP28Pin 1.27mm Adapter Board

1 * TSOP20Pin 0.65mm Adapter Board

1 * SOP20Pin 1.27mm Adapter Board

1 * TSOP16Pin 0.65mm Adapter Board

1 * SOP16Pin 1.27mm Adapter Board

1 * TSOP14Pin 0.65mm Adapter Board

1 * SOP14Pin 1.27mm Adapter Board

1 * TSOP10Pin 0.65mm Adapter Board

1 * SOP10Pin 1.27mm Adapter Board

1 * TSOP8Pin 0.65mm Adapter Board

1 * SOP8Pin 1.27mm Adapter Board

1 * QFN8-DIP8 Programador Adapter WSON8-DIP8 8x6mm 6x5mm

1 * SOP8/MSOP8/SSOP8/SOP16-DIP16 simple Adapter

1 * Adapter SOP8-DIP8 simples

1 * 1.8V Conversion Block 25 series low voltage chip adapter

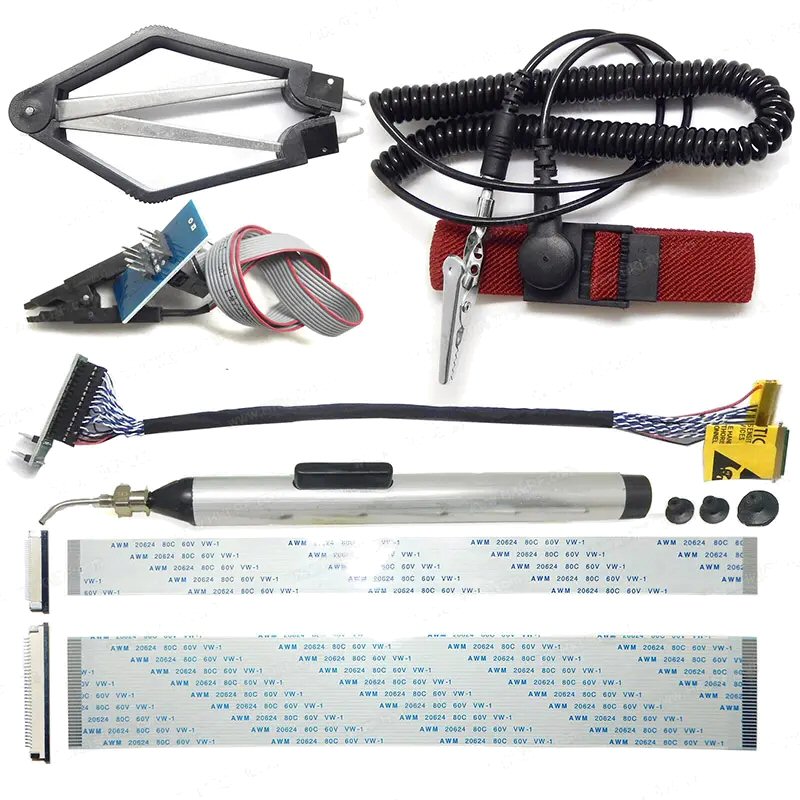

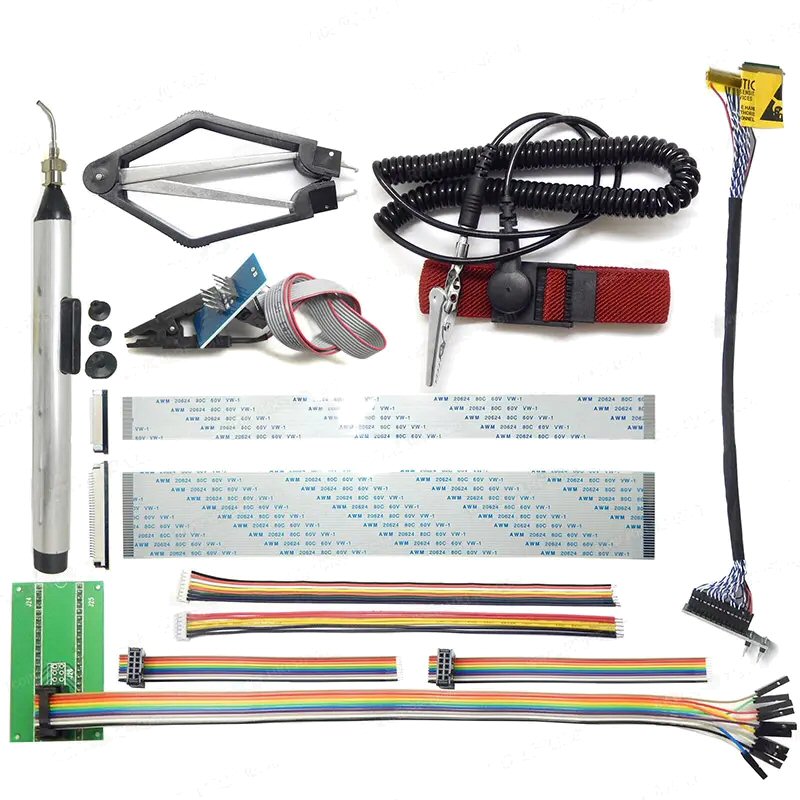

2 * ISP Cable

1 * ICSP Cable

1 * RT-SOP-A ISP Cable

1 * LCD LED screen EDID Cable

1 * IC Chip Extractor

1 * Suction Pen

1 * USB Cable

1 * VGA Cable

1 * FFC Line 200MM 0.5mm-32P

1 * FFC Line 200MM 1.0mm-32P

1 * FPC Base Under 0.5mm-32P

1 * FPC Base Under 1.0mm-32P

1 * Anti-Static Wristband Wrist Strap Band ESD Discharge PC Electricity Grounding

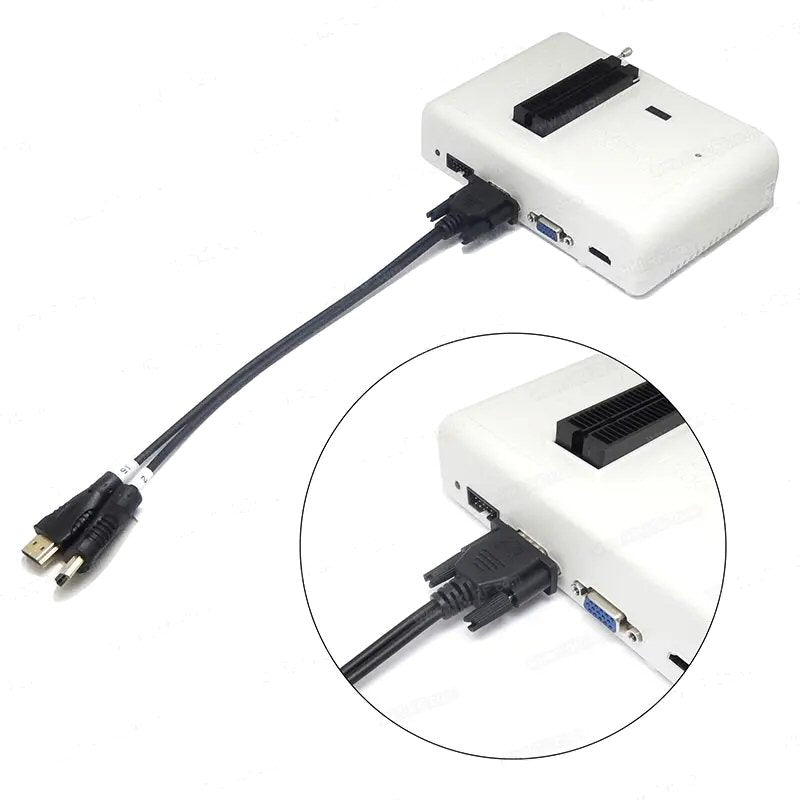

1 * VGA to HDMI Line Cable (It is suitable for reading and writing of TV without VGA interface Note: Use for TV HDMI port with TX/RX function only)
