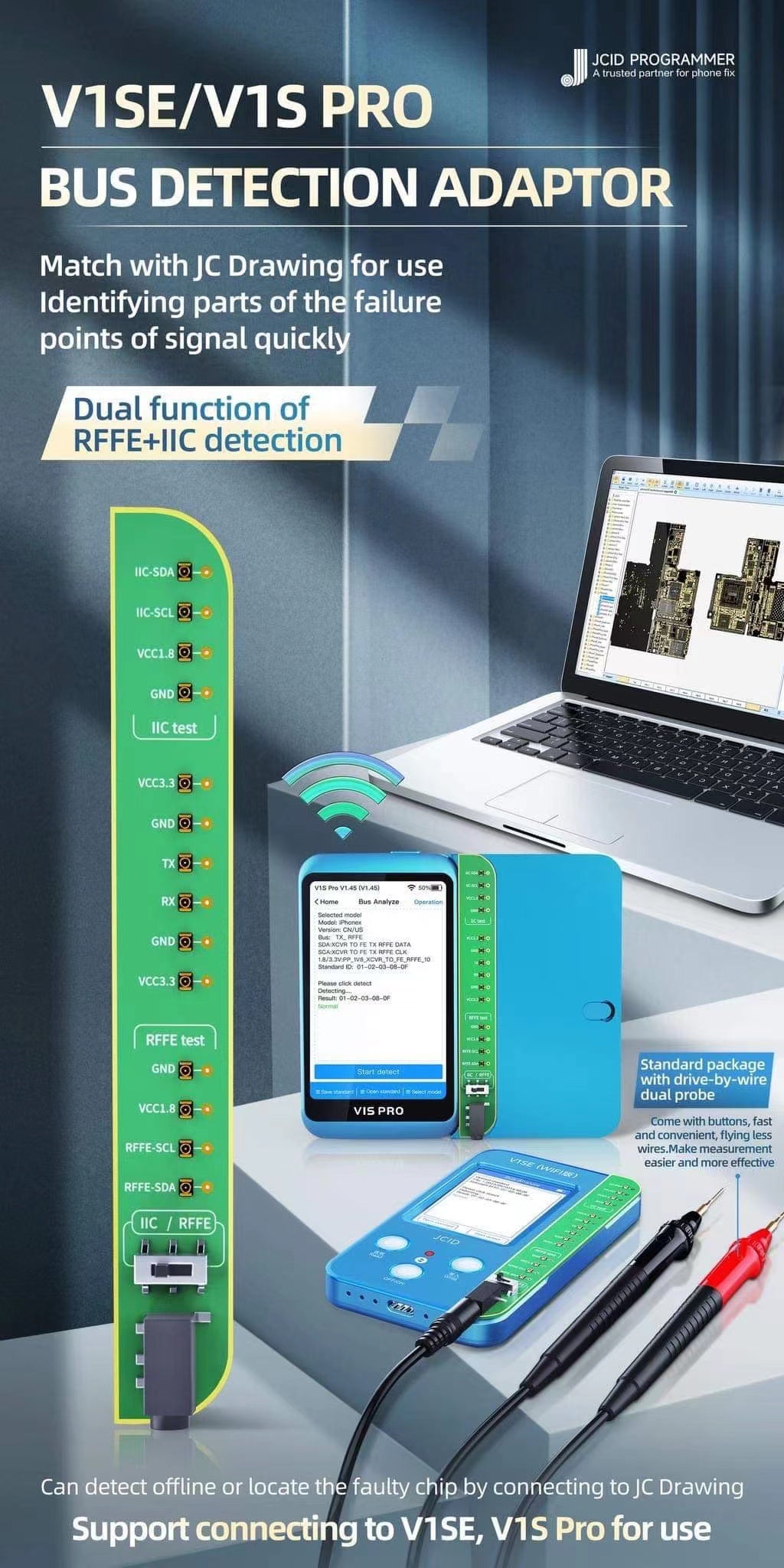

JC Draw V1SPRO V1SE Bus Detection Adaptor For RFFE IIC Detection

JC Draw V1SPRO V1SE Bus Detection Adaptor For RFFE IIC Detection

JCID V1SPRO/V1SE bus detection adaptor is designed for mobile phone IIC and RFFE detection.

It can detect and locate the failure points of signal rapidly, and the drive-by-wire dual probes are beneficial for flying fewer wires.

Helps save time and effort.

It also supports detecting offline or locating the faulty chip by matching with JC Drawing software.

Can only be used in conjunction with the JC Draw software.
and JC ID V1SE

11 in stock

Regular price £28.99
Regular price Sale price £28.99
Sale Sold out

Shipping calculated at checkout.

PRICE INCLUDES 20% VAT


SKU: jcdrawpcb

Description:

JCID V1SPRO/V1SE bus detection adaptor is designed for mobile phone IIC and RFFE detection.

It can detect and locate the failure points of signal rapidly, and the drive-by-wire dual probes are beneficial for flying fewer wires.

Helps save time and effort.

It also supports detecting offline or locating the faulty chip by matching with JC Drawing software.

REQUIREMENTS: Can only be used in conjunction with the JC Draw software and JCID V1SE/V1S Pro





Model - Bus Detection Adaptor

Product Name - V1SPRO/V1SE Bus Detection Adaptor

Brand - JC

Colour - Green

Applicable to - Mobile phone RFFE/IIC detection



FEATURES



Dual-Function Detection

The JCID V1SPRO/V1SE Bus Detection Adaptor features a dual-function detection system - RFFE+IIC detection. This feature allows you to detect and identify the fault points of signals accurately and efficiently.



Offline Detection and Faulty Chip Location

This tool can also detect offline or locate faulty chips by connecting to JC Drawing software. JC Drawing software is a powerful companion for the JCID V1SPRO/V1SE Bus Detection Adaptor, allowing technicians to identify parts of signal failure points quickly. It is easy to use and helps repair technicians to diagnose and repair mobile phones faster and more accurately.



Compatibility

The JCID V1SPRO/V1SE Bus Detection Adaptor works seamlessly with the JCID V1SE/V1S Pro Programmer and the JC Drive-by-wire Dual Probe Multimeter Pen, making it even easier to use and increasing its versatility.



Product Information:
SKU: jcdrawpcb

Material: Plastic
Weight: 0.03
Colour: Green
Dimensions: L: 11.5cm W: 1.6cm H: 0.1cm

Ships From: United Kingdom
Country / Region of Manufacture: China
