Infinity PinFinder Adapter Cable Set For Infinity Box
Infinity PinFinder Adapter Cable Set For Infinity Box
Introducing our cutting-edge Hardware Module with Specialized Software – the ultimate solution for effortlessly locating Rx and Tx pins on your electronic devices.
Designed with precision and innovation, this powerful tool takes the guesswork out of the equation, making your troubleshooting and connectivity tasks a breeze.
Navigating complex circuit boards and identifying the correct Rx and Tx pins can be a daunting challenge, especially in today's intricate electronic landscape.
Our Hardware Module, equipped with its proprietary software, streamlines this process, providing you with an intuitive and efficient solution.
With a user-friendly interface and step-by-step guidance, this module is suitable for both seasoned professionals and enthusiasts alike.
Simply connect the module to your electronic device using standard interfaces such as USB, UART, or GPIO, and let the specialized software take over.
Within seconds, it will meticulously analyze the signals and accurately pinpoint the Rx and Tx pins, presenting you with clear and concise results.
Gone are the days of trial and error or the risk of damaging sensitive components.
Our Hardware Module's advanced algorithms ensure a non-intrusive and safe approach, leaving your devices unharmed while swiftly delivering precise results.
Whether you're working with microcontrollers, IoT devices, communication modules, or any other electronic apparatus, this powerful tool is your go-to companion.
It dramatically reduces testing time, increases efficiency, and empowers you to focus on what truly matters – bringing your projects to life.
11 in stock
PRICE INCLUDES 20% VAT
Couldn't load pickup availability
SKU: infinpinfinder
Description:
Infinity PinFinder Adapter + Cable Set For Infinity Box
Infinity Box PinFinder Adapter is a hardware module with special software that helps find Rx and Tx pins as well as select manually Rx and Tx pins for different models (different CPU and hardware platforms) in automatic and manual mode.
Infinity Box PinFinder Adapter can detect pinout for working phones and for phones with damaged software (phones with damaged hardware must be repaired before pinout detection procedure). Smart-Card, which is integrated into Infinity Box, should be activated to use PinFinder Adapter. Activation is free of charge and takes only several minutes.
-
Input

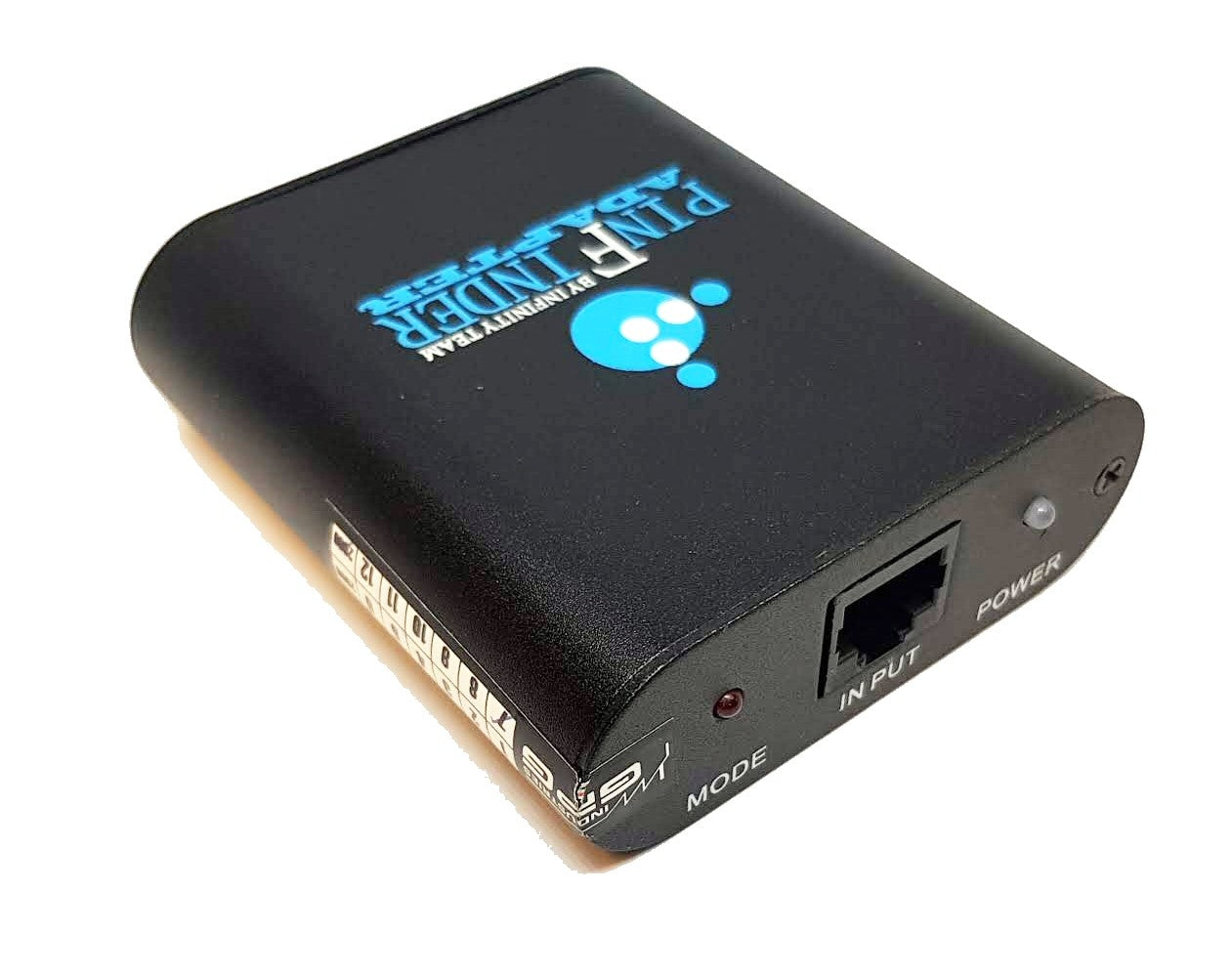

- RJ45: Unibox mirrored
-
Output #1

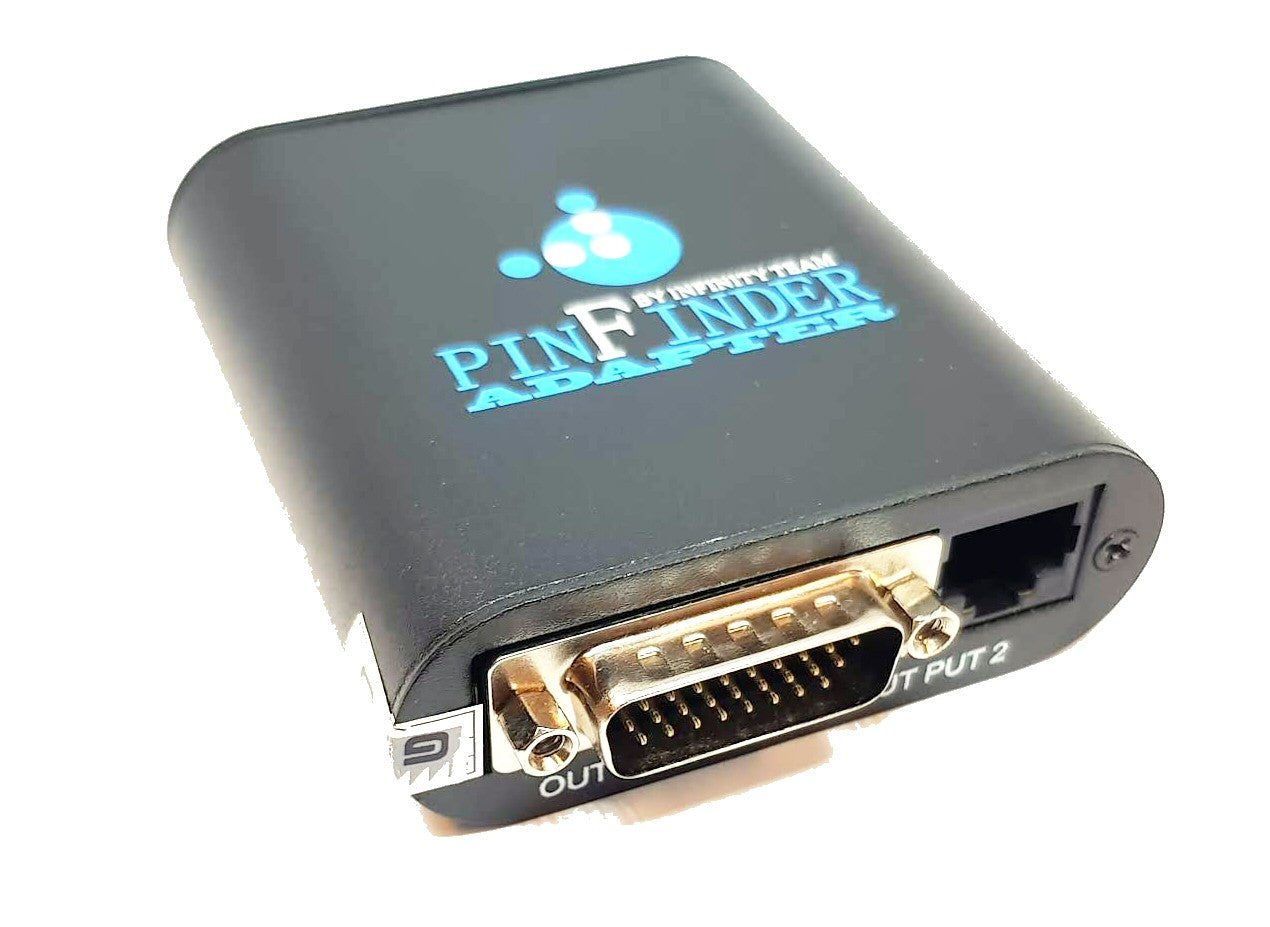

- DR26, 26 pins
- Rx/Tx pins, switchable
-
Output #2
- RJ45, 8 pins
- Rx/Tx pins: switchable
- Vpp, Gnd: fixed (not switchable), with On/Off option
- compatible with popular RJ45 cables:
- Unibox
- Infinity-Box
- ATM-Box
- UFS
- JAF
- Griffin
- Furious-Box
- Thunderstorm
- SPT-Box
- Vygis-Toolbox
-
Maximum number of pins
- 24
-
Indication
- switchable power LED
- adapter power indication
-
Output circuits shortcut protection
- Yes
-
Automatic pin detection
- Yes
-
Manual pin selection
- Yes
-
Additional options
- Fast Rx/Tx pins swap
- Fast pin order reverse (€š¬“keyboard up€š¬� <- €š¬“keyboard down€š¬� numbering)
- Fixed predefined RJ45 output
- Switchable RJ45 output
-
Predefined (factory) pinout database
- Yes
-
Supported CPU types
- MT62xx (MTK)
- Spreadtrum (SPD)
- AD65xx (ADI)
- AD67xx (ADI)
- Hercules (TI)
- Calypso (TI)
- Locosto (TI)
- OM63xx (NXP, Philips)
- other CPU types support is under development
Note: supported CPU list is just for reference due to non-stop upgrade and improvements process is in progress
Package includes:

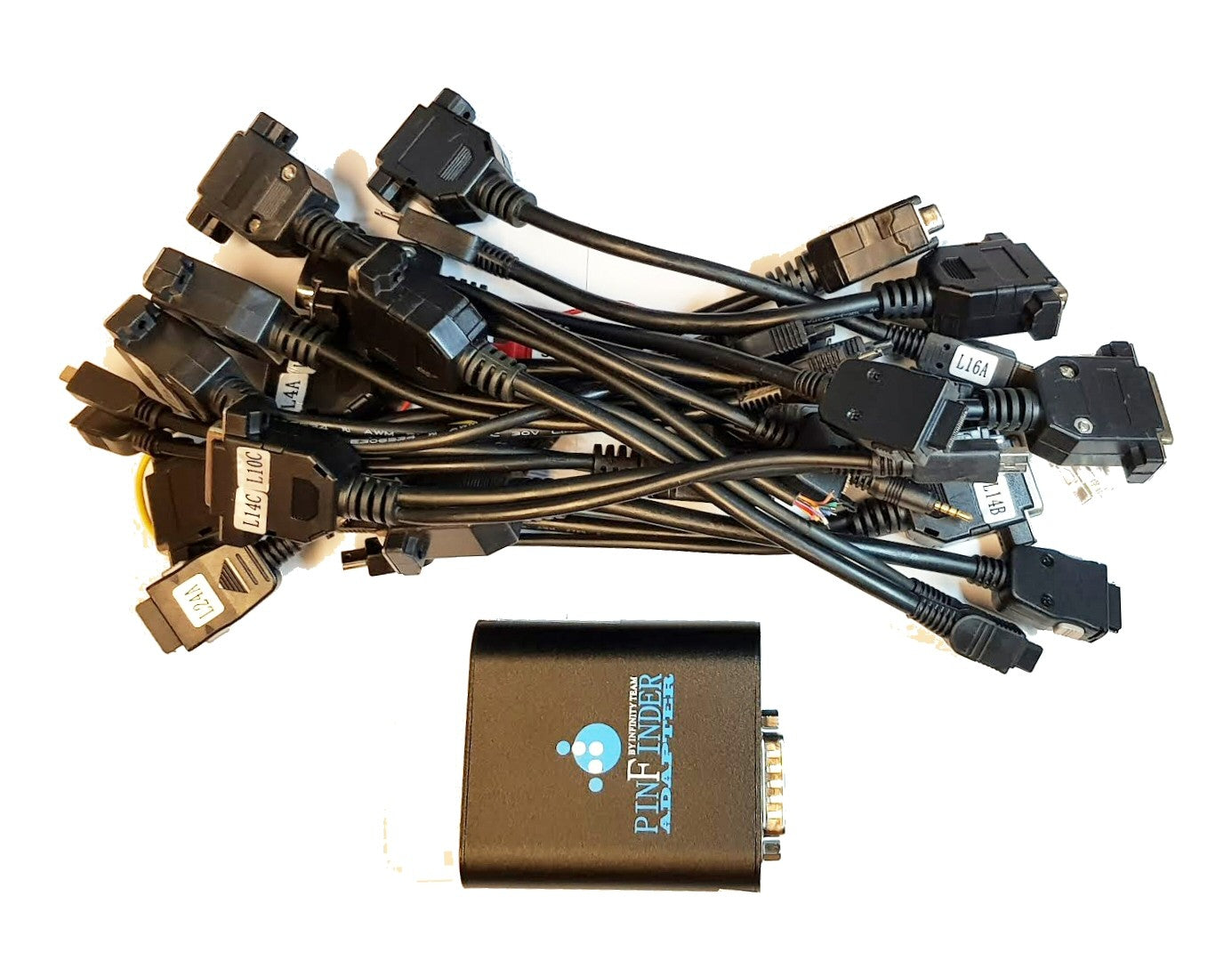

- Infinity-Box PinFinder Adapter - 1pc.
- Cables -18pcs.
Cable list for Infinity box pin finder adapter- L10A/L10B
- L10C/L14C
- L12A/10PIN
- L12C/L14A
- L14F
- L15A/L14B
- L16A
- L16B
- L18A
- L18B
- L20A
- L22A
- L24A
- L3A/L14D
- L4A/L14E
- L8A/L12B
- RJ45- 4 TestPoint
- RJ45-RJ45
Product Information:
SKU: infinpinfinder
Material: n/a
Weight: 0.03kg
Colour: n/a
Dimensions: L: n/a W: n/a H: n/a
Ships From: United Kingdom, United Kingdom, United Kingdom
Country / Region of Manufacture: China
Share
